전기,전자 ＆ 네트워크계측기 TE 5075 Digital Multi-Meter
페이지 정보
본문

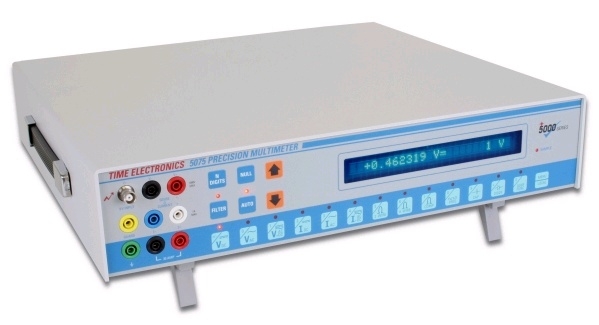

Time 5075 Precision Digital Multi-Meter
* 7 digit resolution
* AC voltages from 3mV (resolution: 100nV to 3kV)
* DC voltages from 3mV (resolution: 10nV to 10kV)
* AC and DC currents from 3uA to 30A
* Resistance 30mOhm (resolution: 10nOhm to 1GOhm)
* Capacitance 30nF to 300uF
* Frequency 1Hz to 100kHz
* PT100 -200°C to 600°C
첨부파일
-
2회 다운로드 | DATE : 2023-04-12 10:46:58 -
5075v1c.pdf (106.3K)
2회 다운로드 | DATE : 2023-05-23 11:56:00
