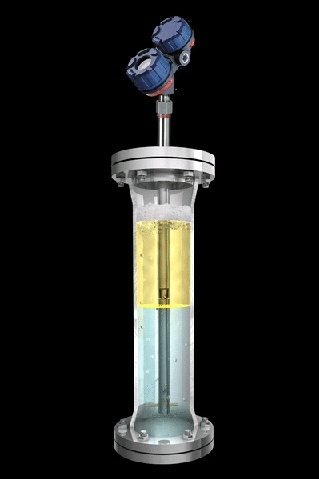

Magnetrol Eclipse Guided Wave Radar

  * No level change to calibrate

  * Not affected by changing media conditions ; e.g. dielectric, SG, etc.

  * Not affected by foam or vapors

  * One Model 705 to be used  with all probe types

  * SIL 2 (SFF=91%) Hardware compliance

  * Signal output :

     - 4-20mA or 4-20mA w/ HART(optional)

     - 3.8 to 20.5mA useable (meets NAMUR NE 43)

     - Fundation Fieldbus or Profibus-PA

  * Span : 6" to 75 feet (15cm to 23 meters)

  * Loop Resistance :

     - General Purpose / Intrinsically safe : 620 ohm @ 24VDC

     - Explosion proof ; 500 ohm @ 24VDC

  * Display : 2-line x 8 digit LCD

  * Resolution : +/- 0.1"

  * Coaxial, Enlarged Coaxial probe

  * High Pressure High Temperature (HPHT) Probe

  * Overfill, Steam, Interface Probe

  * Twin Rod, Flexible Probe
